Box Profile

Gusclad Cladding, Insulated Panel Manufacturer

Details on Box Profile Materials

Available in 0.5mm poly, 0.6mm poly, 0.5mm pvc and 0.7mm pvc or Agriclad 0.55mm(Grant).

Available in PVC and Polyester finish and in Agriclad(grant). Check out the available colours on our colour page.

Gusclad Colours chart for PVC Finish products

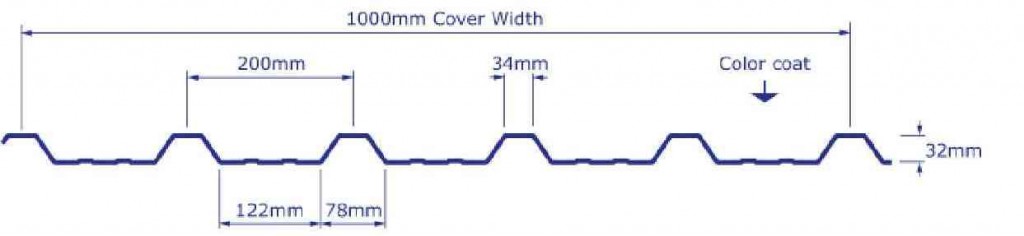

All sheets are cut to a required length. The box profile sheets are 1m cover plus the overlap on top of that.

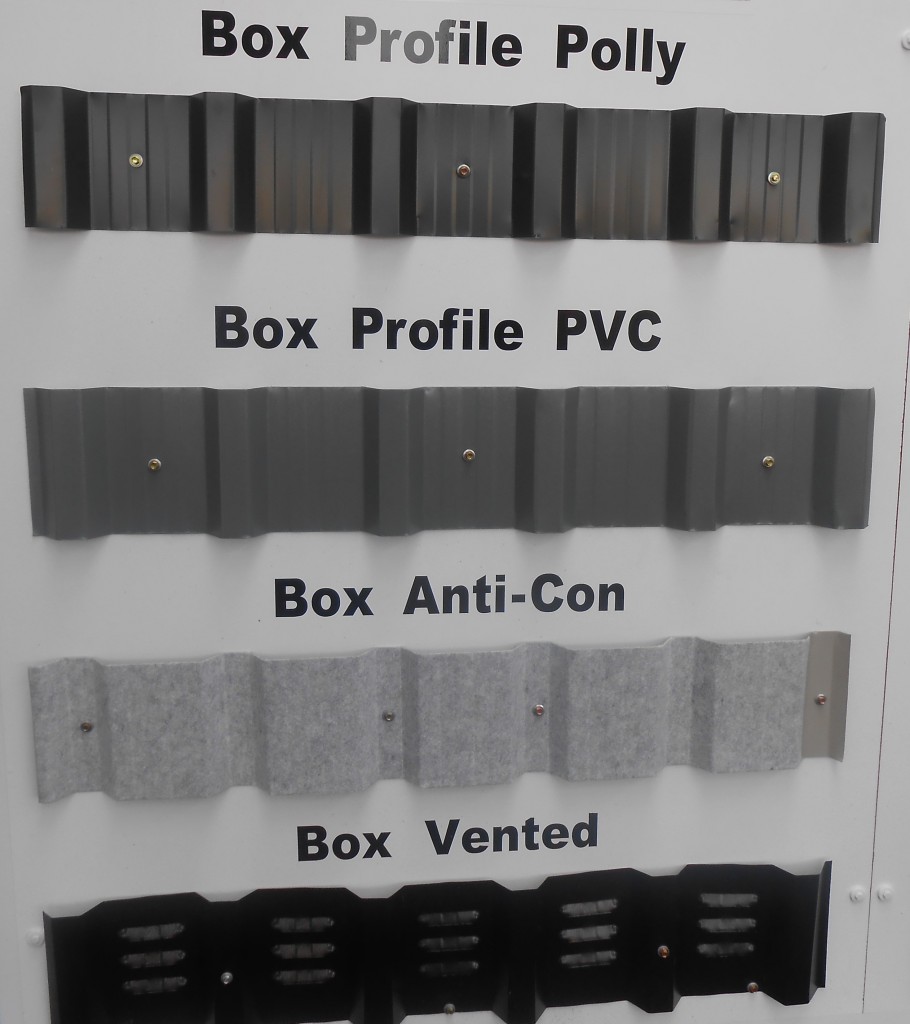

Box profile material can be vented and can have anti-con applied to the back of it at time of manufacture.

Clearlights are available to suit in the same profile in 10ft, 12ft, 16ft and 22ft.

box profile


The box profile is available in a Agriclad which is the grant approved sheet. This would be used in building that house animals. The Agriclad sheet can be vented to allow extra airflow in the building. The Agriclad sheets are available in Juniper green and Slate Grey and are 0.55mm gauge.

Box Profile At A Glance

  • Choice of up to 10 colours
  • PVC and Polyester finish
  • .5 to .7 gauge
  • Sheets cut to exact lengths required
  • Clearlight available to suit
  • Non Drip is available
  • Venting is possible


Products should be covered or stored in a dry place  if not used immediately. This is to prevent the ingress of water, which could damage the cladding.
